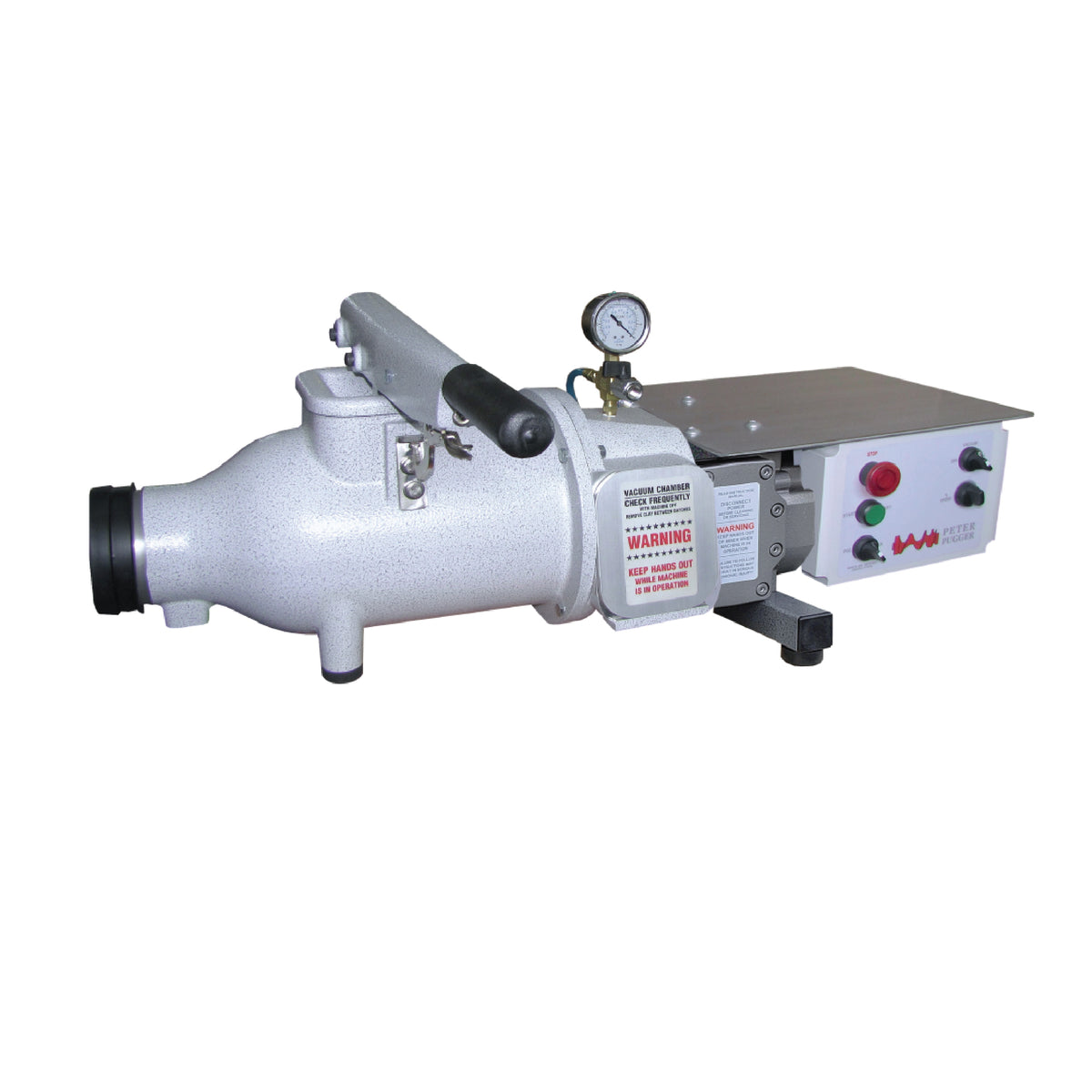

VPM-9 Vacuum Power Wedger

Elevate ceramic clay preparation to be easy, fast, and of the highest standard.

The Peter Pugger Vacuum Power Wedger is a professional-grade machine designed to mix, wedge, and de-air clay all in one unit. It reduces labor and cuts the long time spent hand-wedging, transforming scrap or dry clay mixed with water into smooth, dense, and ready-to-use clay in just minutes.

• Maximum Batch Capacity*: 25 lbs
• Wedging Rate: 500 lbs/hour
• Mixing Rate: 150 lbs/hour
• Dimensions: 36" L x 14" W x 14" H
• Crated Weight: Aluminum model – 149 lbs (shipped via FED EX Ground)
• Hopper Door Size: 5.25" x 5.25"
• Extrusion Size: 3" round
• Electrical: 3/4 HP, 1-phase, 8 amps at 120V, 6 amps at 240V
• Vacuum Pump: 1/2 HP (integrated with main electrical system)
• *Maximum batch capacity may vary depending on material density and moisture content.
• Lead Time: 30-45 days

Note: The VPM-9 Vacuum Power Wedger is a pre-order item. If you are interested, please contact the company directly.
